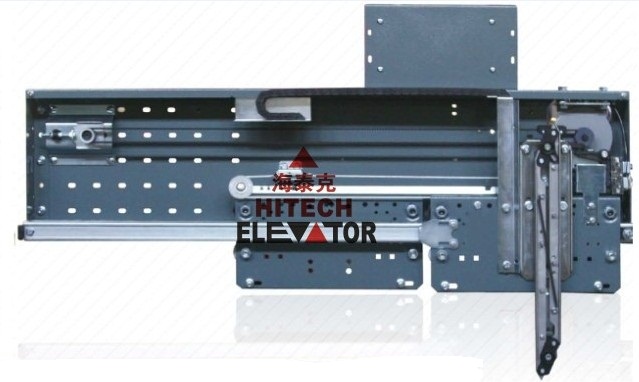

2 Panel Side Opening PM Car Operator J2200-T2A

1.Simple mechanical design,easy installation,reduce mechanical malfunction.
2.Precise speed and position control,Hall effect magnetic encoder can distinguish displacement of 0.02mm.
Exact distance control can realize the proximitv zero speed door close,eliminate door closing  impact.
3.Adopt Hall effect magnetic encoder,no wear and tear,long life span.
Confirm ends position and motion curve according to distance, requiring no position switches.

Motor:

1.Great torque,low speed motor, torque can reach 8Nm.
2.High output efficiency, the rotors of synchronous motor are of no wear and tear.
3.Energy saving, environmental protective. The rotors are made of permanent magnet material, no consumption

of excitation current. The output effiency of 47W PM motor equals to that of 100W-asynchronous motor.

Controller:

1.High speed core, 32-bit CPU adopted as core,A strong guarantee for high performance control.
2.Low noise,DIPM Power Modules.Optimized vector control mode ensures the overall control performance.
3.Magnetic pole self-learning and door width self-learning can be completed by tact switch and push button.Speed

parameters and torque parameters can be adjusted by knob switch ,so it's easy to be debug the operate on site.
