Gearless/GTW GTS Series
1.Voltage:380V
2.Suspension:2:1
3.DZE-14E Brake:AC220V 5.3
4.Weight(with support)780kg

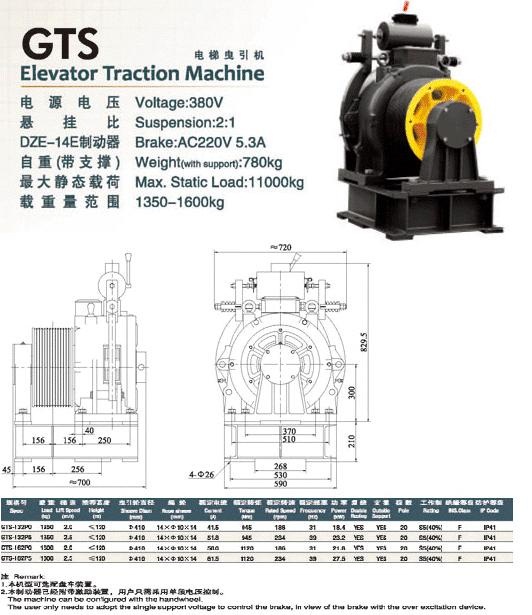

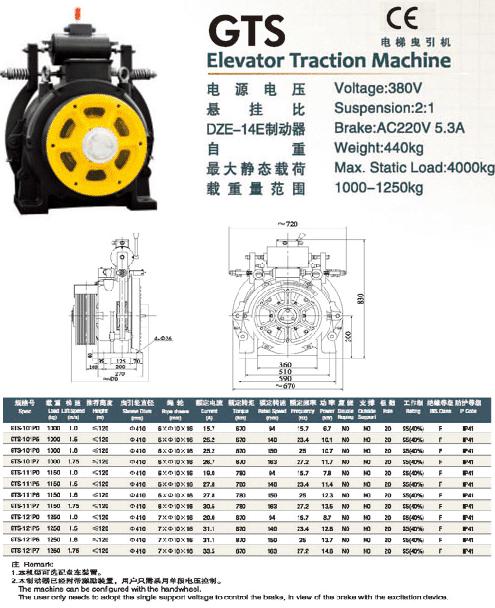

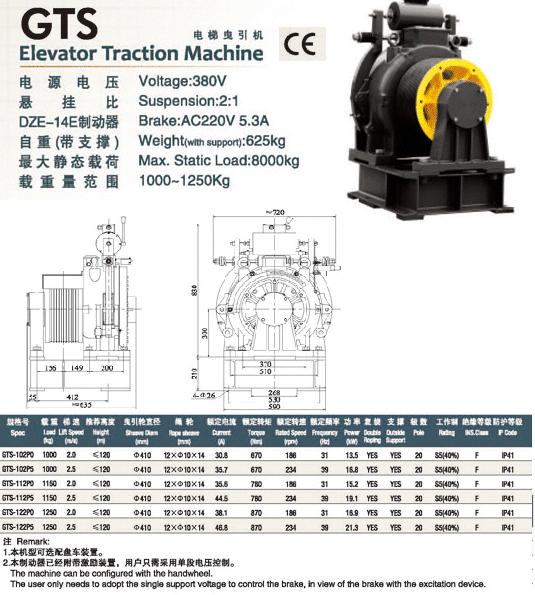

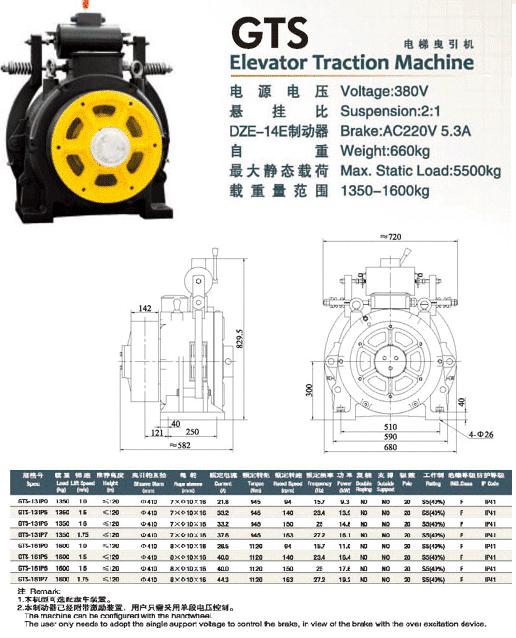

Elevator Traction Machine(GTW GTS Series)

Type:GTS

1.Voltage:380V

2.Suspension:2:1

3.DZE-14E Brake:AC220V 5.3

4.Weight(with support)780kg

5.Max. Static Load :11000kg

6.Range:1350-1600kg

Remark:

The machine can be configured with the handwheel.

The user only needs to adopt the single support voltage to control the brake, in view of the brake with the excitation device.

Hitech Elevator has been supplying various types and specifications of elevator traction machine with different speeds. And Hitech Elevator welcomes you to visit our website or email us to get traction machine preliminary inquiry sheet for your selection to meet your specific requirements.
