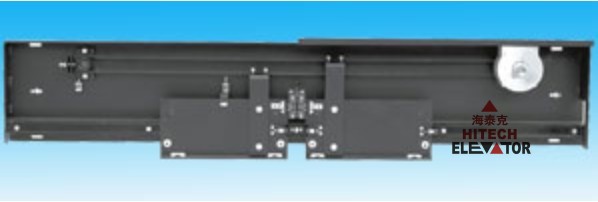

TKP131-09 Center opening AC PM Door Operator

Using PM motor,large rotary torque,high efficiency,energy saving
Using motor synchronous with direct drag mode to transfer torque,more compact design
Strong comfortable feelinsg of adjusting speed,achieve the completely closed loop control of the torque,speed and position
Using asynchronous Skate door clutch, car frame and car top installation
Door operator load weight≤200KG；Volatage：200V~250V,50/60Hz

Illustration about TKP131-09 PM Door Operator:
 1. This door operator meets the standard of GB7588-2003.
 2. It's convenient to install both on frame and roof, also can be installed
directly on the wall if the front wall has been strengthened.
3. The technology of speed displacement vector control can make the door
operator adaptive control according to the load.
 4. Pulled by the PM synchronous motor directly, it can run smoothly and stably
with a low noise, and a long life.
5. PM Synchronous door operator covers all kinds of specifications with a
opening width from JJ700mm to JJ1200mm, a maximum opening height of HH2400mm.
 6. Rated voltage of Door operator: 220VAC; rated current of door operator: 1.05A
