TKP161-05G05  2-leafs Center Opening Landing Door Device

Its landing door locking device has passed 1 million times of life test,with CE certificate;mechanism

has passed 45kg pendulum impact test
Using weight drop doorr close mode,the weight drop and guide rod are placed in the inner side of door panel,

when there is glass panel, the weight drop is beside the door panel
Door panel unlocking mode,or door frame unlockinng mode
The door locking contractor voltage:AC110V,DC220V
Can be with glass door panel

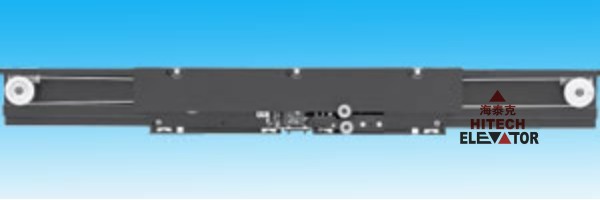

Illustration of TKP161-05 2-leafs Center- Opening Landing Door Device:
1.The landing door device is portable, attractive, solid, antirust and
nondeforming after using the high-quality aluminum mould-frame alloy.
 2. It is easy to install with a low noise and smooth operation.
 3. Hanging board of door utilizes laser cutting with precise location
 There are several kinds of landing door devices with complete specifications,
specific specifications as follows:
 1. 2-leafs center-opening landing door device: JJ700~1200,HH2000~2400
 2. 2-leafs side open landing door device: JJ700~2000,HH2000~2600
 3. 4-leafs center-opening landing door deviceJJ1200~3000,HH2000~2600
 4. 3-leafs side opening landing door device: JJ1300~2400, HH2000~2400
 5. 6-leafs center opening landing door device: JJ2500~4000
